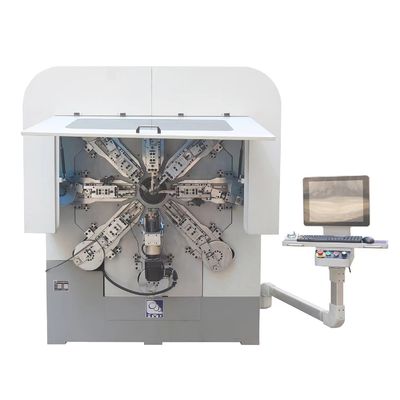

Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm

Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm

  • Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm
  • Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm
  • Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm
  • Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm
  • Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm
  • Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm
Product Details:
Place of Origin: Guangdong, China
Brand Name: HYD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Weight: 3200 Kg Voltage: 380 V
Power: 27 KW Wire Size: Low-carbon Steel: 2-6mm, High-carbon Steel: 1-4mm
Servo Motors: 12 Axes Max Wire Speed: 100 M/min
Wire Feed Roller: 4 Pairs Maximum Error: ±0.15 (Length)
Control System: 1SET Decoiler: 500KG
Reducer: 11PCS Servo Motor Power: 27KW
Motor Brand: Sanyo Shortest Angel Length: 4 Times Wire Diameter
Machine Size: L2100*W2050*H2000MM
Highlight:

12 Axes CNC Spring Machine

,

100m/min Spring Coiling Machine

,

Low-carbon Steel 2-6mm Computer Spring Machine

Automatic Multi-Function Computer Spring Machine HYD 1-4 mm
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm 0
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm 0
Technical Specifications
Model HYD-40T-10A HYD-40T-12A
Wire Size Low-carbon Steel 2-6mm
High-carbon Steel: 1-4mm		 Low-carbon Steel: 2-6mm
High-carbon Steel: 1-4mm
Servo Motors 10 axes 12 axes
Lead Rail tineraries 120mm tineraries 120mm
Wire Feed Roller 4 Pairs 4 Pairs
Maximum error ±0.15(Length) ±0.15(Length)
Max Wire Feed Speed 100m/min 100m/min
Control System 1SET 1SET
Decoiler 300KG 500KG
Reducer 10PCS 11PCS
Servo Motor Power 21.5KW 27KW
Motor Brand Sanyo Sanyo
Shortest Angel Length 4 Times Wire Diameter 4 Times Wire Diameter
Power Supply 380V±10%V50Hz 380V±10%V50Hz
Machine Dimension 2500KG 3200KG
Machine Size L1100*W1450*H2000MM L2100*W2050*H2000MM

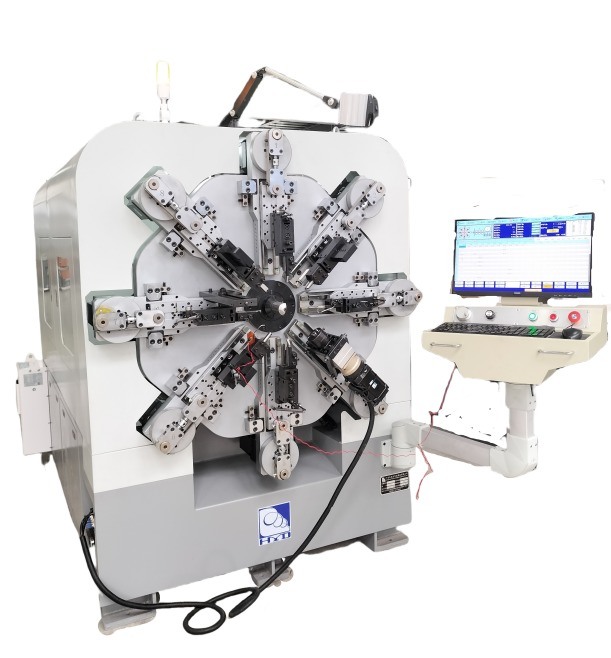

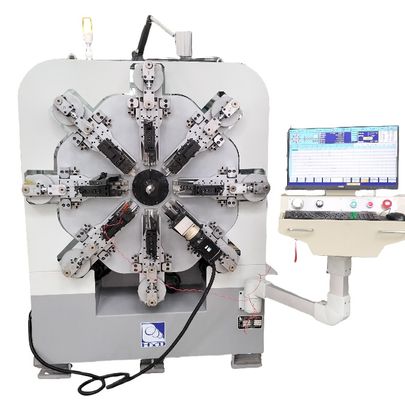

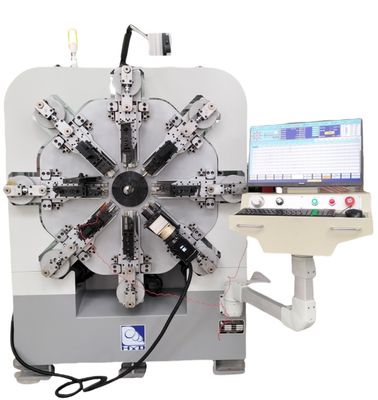

Product Images
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm 2
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm 3
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm 4
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm 5
Application Scenarios
Automatic Multi-Function CNC Spring Machine with 12 Axes Servo Motors and 100m/min Speed for Low-carbon Steel 2-6mm 6
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements.
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
Q6: What is the power supply of the machine?
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q7: What is the payment term?
A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
Q8: What is the delivery time?
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
Q9: What is the guarantee period of the machine?
A9: The guarantee period is one year from the date of B/L.
Q10: What is the MOQ?
A10: One set. We will make the machine suitable for you according to your needs.
