Automatic CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power for Precision Coiling
Product Details:
Place of Origin: Guangdong, China
Brand Name: HYD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Weight: 900 Kg Voltage: 380 V
Power: 9.35 KW Wire Size: 0.3-2.5 Mm
Servo Motors: 10 Axes Max Wire Speed: 110 M/min
Program Storage: 1000 Lead Rail: Tineraries 80mm
Wire Feed Roller: 2 Pairs Maximum Error: ±0.03 (Length)
Motor Brand: Sanyo Shortest Angel Length: 4 Times Wire Diameter
Power Supply: 380V±10%V50Hz Decoiler: 300 KG
Machine Dimension: L1700*W1150*H1700 MM
Highlight:

110m/min Max Wire Speed CNC Spring Machine

,

1000 Program Storage Volume Computer Spring Machine

,

9.35kW Power Spring Coiling Machine

Automatic 0.3-2.5mm Multi-Function Precision Spring Coiling Machine
Computer Camless Spring Machine for Motor Core Manufacturing
The HYD-25T series computer-controlled spring coiling machines offer precision forming for motor core manufacturing applications. These multi-function machines feature advanced camless technology for superior spring production.
Technical Specifications
Model HYD-25T-11A HYD-25T-12A
Wire Size 0.3-2.5mm 0.3-2.5mm
Servo Motors 10 axes 12 axes
Lead Rail Tineraries 80mm Tineraries 80mm
Wire Feed Roller 2 Pairs 4 Pairs
Maximum Error ±0.03 (Length) ±0.03 (Length)
Max Wire Feed Speed 110m/min 110m/min
Motor Brand Sanyo Sanyo
Shortest Angle Length 4 Times Wire Diameter 4 Times Wire Diameter
Power Supply 380V±10%V 50Hz 380V±10%V 50Hz

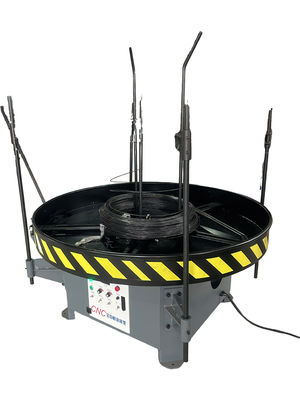

Decoiler 300KG 500KG
Machine Weight 1000KG 1300KG
Machine Dimensions L1700×W1150×H1700mm L1700×W1150×H1700mm

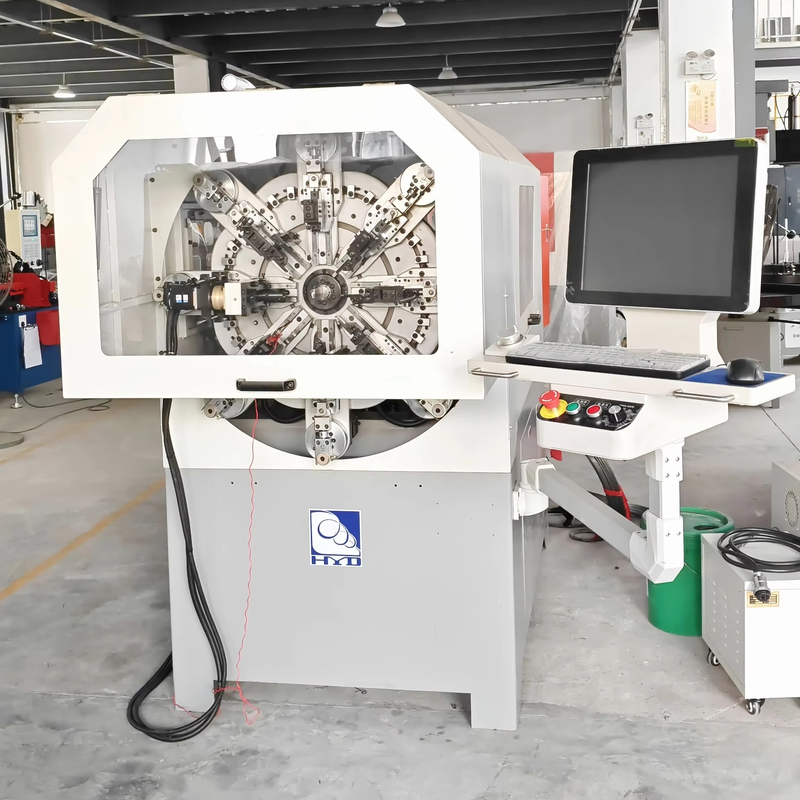

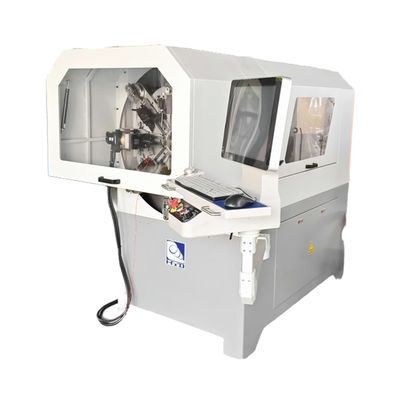

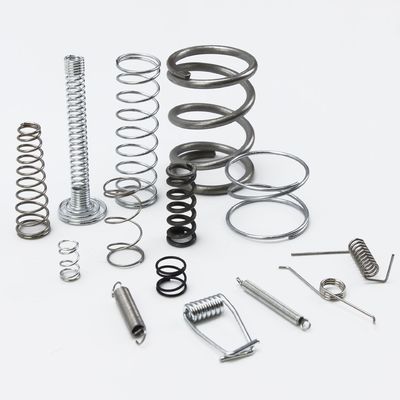

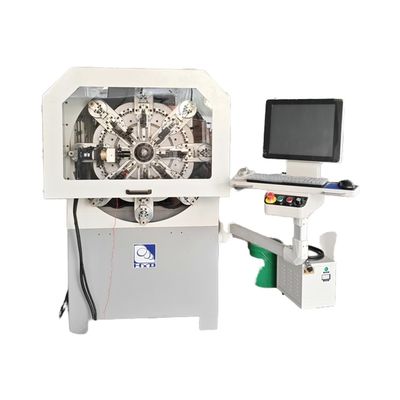

Product Images
Automatic CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power for Precision Coiling 0
Automatic CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power for Precision Coiling 1
Automatic CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power for Precision Coiling 2
Automatic CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power for Precision Coiling 3
Automatic CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power for Precision Coiling 4
Automatic CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power for Precision Coiling 5
Frequently Asked Questions
Can you send me the catalogue?
We have different machine catalogs available. Please specify your product requirements.
Do you accept OEM?
We can produce custom designs according to your specifications.
Can it be configured with something else?
Yes, we can customize the machine to meet your product requirements.
Are you a factory?
We are factory direct manufacturers and welcome factory visits.
What information helps get an accurate quotation?
Please provide drawings, pictures, voltage requirements, planned output, and technical specifications.
What is the power supply?
Standard is 380V, 3P, 50Hz (China standard), but we can customize to requirements.
What is the payment term?
30% deposit with PO confirmation, 70% before shipment. Other terms negotiable.
What is the delivery time?
Typically 30 days after deposit, with some models available in 15 days.
What is the guarantee period?
One year from the date of B/L.
What is the MOQ?
One set minimum order quantity.
