Automatic Multi-Function 12 Axes Swivel Type Spring Coiling Machine 2-6mm Computer Spring Making Machine Motor Core Components

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HYD

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Weight:	3200 Kg	Voltage:	380 V
Power:	27 KW	Wire Size:	Low-carbon Steel: 2-6mm, High-carbon Steel: 1-4mm
Servo Motors:	12 Axes	Max Wire Speed:	100 M/min
Wire Feed Roller:	4 Pairs	Maximum Error:	±0.15 (Length)
Control System:	1 SET	Decoiler:	300 KG
Reducer:	10 PCS	Servo Motor Power:	21.5 KW
Motor Brand:	Sanyo	Shortest Angel Length:	4 Times Wire Diameter
Machine Size:	L1100W1450H2000 MM
Highlight:	12 axes swivel spring coiling machine , computer spring making machine 2-6mm , CNC spring machine motor core

Automatic Multi-Function 12 Axes Swivel Type Spring Coiling Machine

Product Overview

Multi-function Computer Spring Machine with advanced servo control system for precision spring manufacturing.

Technical Specifications

Specification	HYD-42T-12A	HYD-42T-13A
Wire Size (Low-carbon Steel)	2-6mm	2-6mm
Wire Size (High-carbon Steel)	1-4mm	1-4mm
Servo Motors	12 axes	13 axes
Lead Rail	120mm	120mm
Wire Feed Roller	4 Pairs	4 Pairs
Maximum Error (Length)	±0.15	±0.15
Max Wire Feed Speed	100m/min	100m/min
Control System	1 SET	1 SET

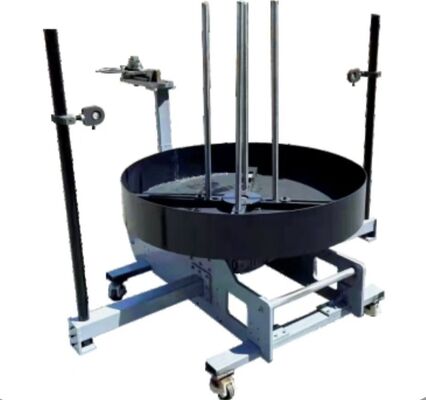

Decoiler	300KG	500KG
Reducer	10 PCS	11 PCS
Servo Motor Power	21.5KW	27KW
Motor Brand	Sanyo	Sanyo
Shortest Angel Length	4 Times Wire Diameter	4 Times Wire Diameter
Power Supply	380V±10%V 50Hz	380V±10%V 50Hz
Machine Weight	2500KG	3200KG
Machine Size	L1100×W1450×H2000MM	L2100×W2050×H2000MM

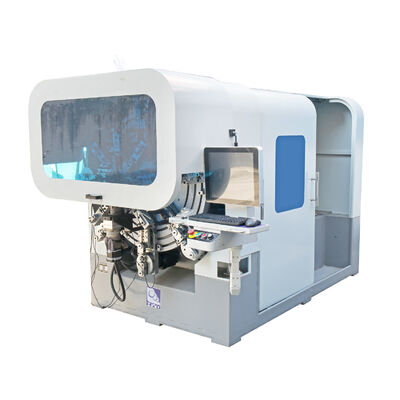

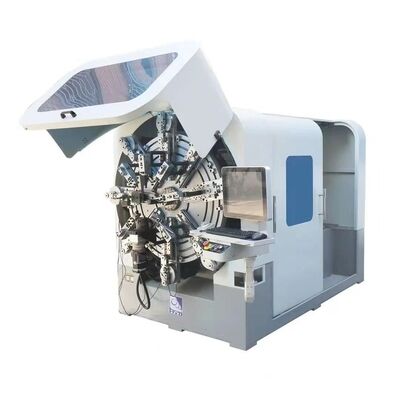

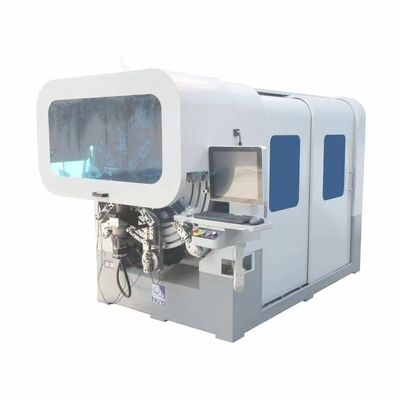

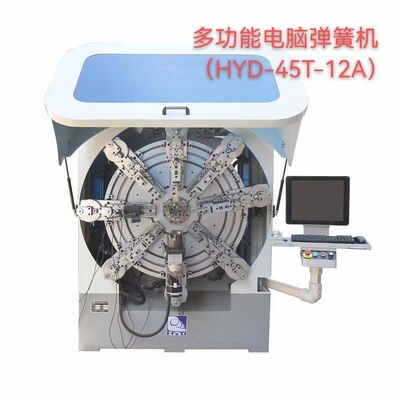

Machine Gallery

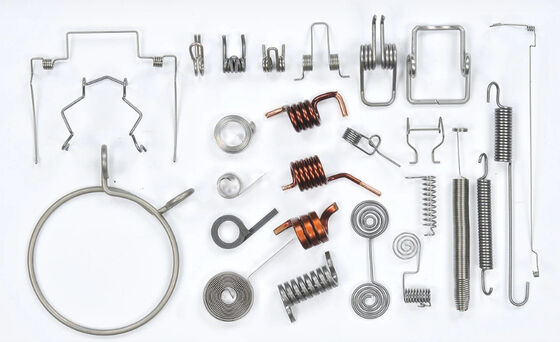

Application Scenarios

Ideal for automotive, electronics, furniture, and various industrial spring manufacturing applications.

Product Categories

Camless Spring Machines
Cam Spring Machines
Compression Spring Machines
Wire Bending Machines
Rotary Head Machines

Why Choose Us

Factory Direct Sales with Competitive Pricing
CE Certified Quality Standards
Japanese Sanyo Servo Motors
Customizable Solutions
Comprehensive Technical Support

About Our Company

Professional manufacturer specializing in high-precision spring coiling machines with extensive industry experience.

Transportation & Packaging

Standard seaworthy wooden boxes for safe international shipping. We support FOB, CIF, EXW and other trade terms.

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
