Vesatile Rotating CNC Spring Forming Machine For Tower Shaped Compression Spring

Vesatile Rotating CNC Spring Forming Machine For Tower Shaped Compression Spring

Vesatile Rotating CNC Spring Forming Machine For Tower Shaped Compression Spring
Vesatile Rotating CNC Spring Forming Machine For Tower Shaped Compression Spring
Vesatile Rotating CNC Spring Forming Machine For Tower Shaped Compression Spring
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60T-16A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: L/C,D/A,D/P,T/T,,Western Union
Supply Ability: 20 Pcs Per Month
Contact Now
Detailed Product Description
Control System: Taiwan Automation: Automatic
Trademark: HYD HS Code: 84633000
Highlight:

CNC spring forming machine for compression springs

,

rotating wire bending machine for tower springs

,

versatile CNC spring forming machine with rotation

Versatile Rotating CNC Spring Forming Machine for Tower Shaped Compression Springs
This advanced CNC machine combines the functionality of both wire bending and spring forming operations in a single, versatile unit. Designed specifically for manufacturing tower-shaped compression springs with precision and efficiency.
Advanced Computer-Controlled Operation
Features integrated computer control that combines wire bending machine and spring forming machine capabilities. The wire bending component can be detached and repositioned as needed for flexible operation.
Multi-Axis Precision Control
  • Total 16-axis configuration for maximum flexibility
  • Includes Cam axis, Feeding axis, Quill Rotary axis, Wire rotary axis, and Spinner axis
  • Precision control for complex spring geometries
Technical Specifications
Specification Details
Axis Count 10 axis
Wire Size Range Steel wire: 2-6mm
Iron wire: 3-8mm
Maximum Wire Length Unlimited
Max Feeding Speed 80m/min
Wire Feeding Wheel Count 4 pairs
Motor Power Consumption 59KW
Reducer Count 13 pieces
Machine Size 3600×1400×2050mm
Weight 4500kg
Machine Gallery

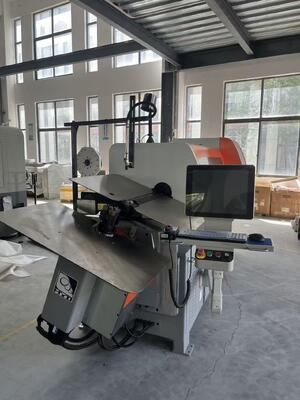

CNC Spring Forming Machine front view showing control panel and forming mechanism

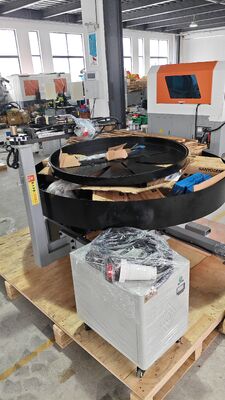

CNC Spring Forming Machine side view displaying wire feeding system

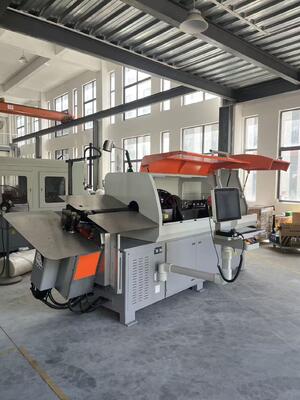

Close-up of CNC Spring Forming Machine wire bending mechanism

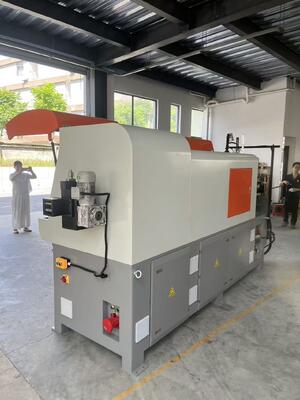

CNC Spring Forming Machine operational view with tooling components

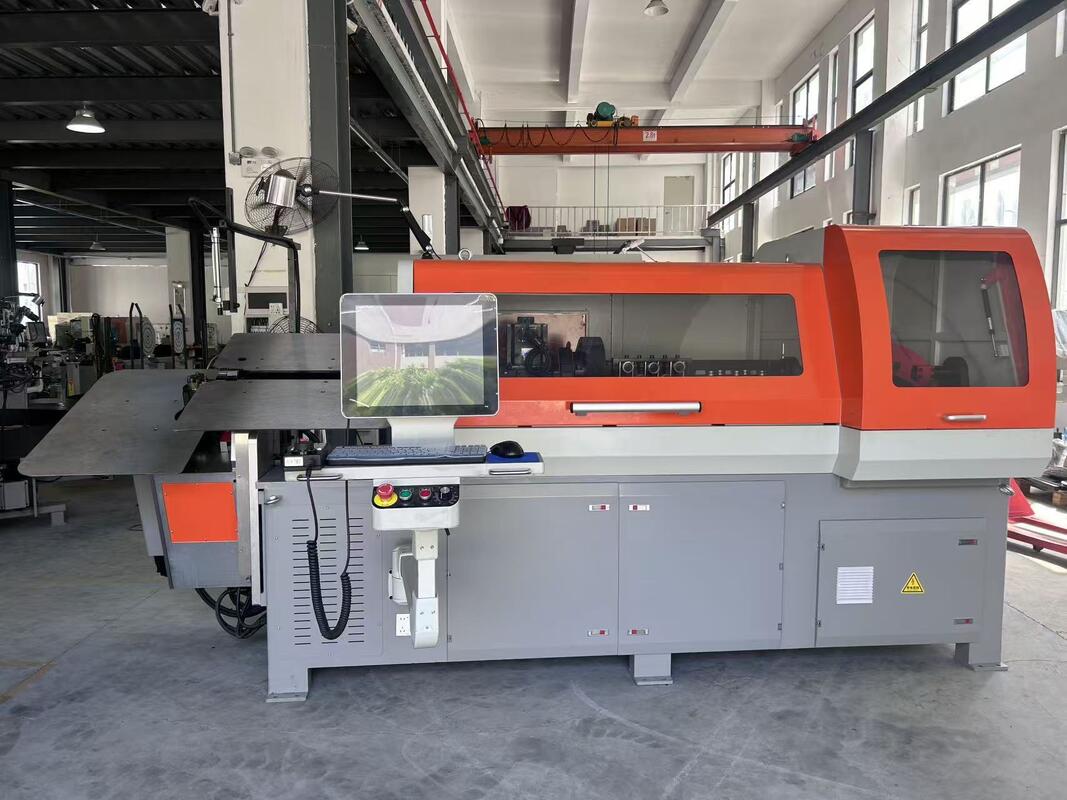

Overview of complete CNC Spring Forming Machine setup
Our Advantages and Services
  • Professional consulting service to help identify optimal solutions for your specific requirements
  • Comprehensive technical discussions covering machine setup, pricing, payment terms, and delivery schedules
  • Rigorous quality control throughout production with regular progress updates
  • Free training and accommodation during factory inspections, plus detailed photos and videos for pre-shipment confirmation
Spring Production Examples
Precision tower-shaped compression springs manufactured using CNC technology
Various spring types and sizes produced by CNC forming machine
High-quality compression springs with consistent coil formation
Industrial spring applications showing durability and precision
