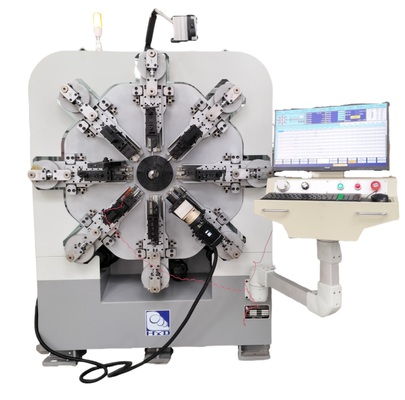

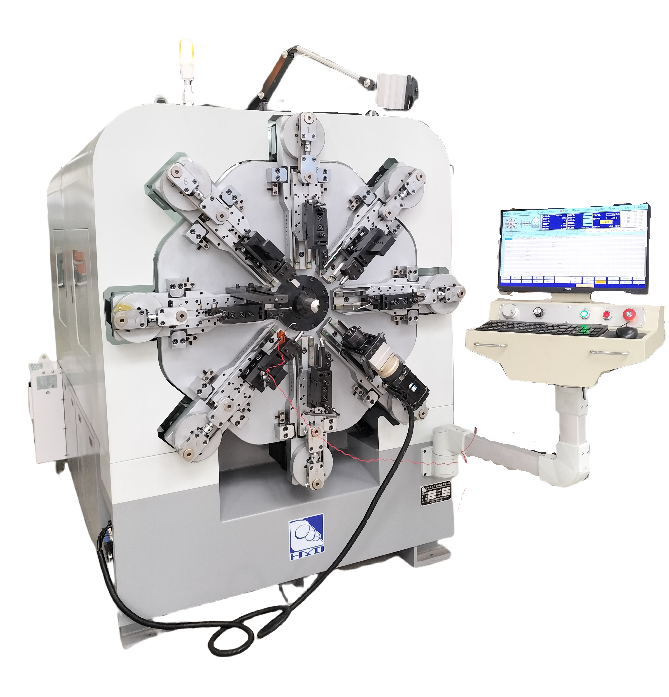

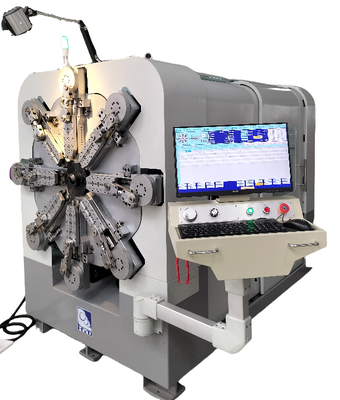

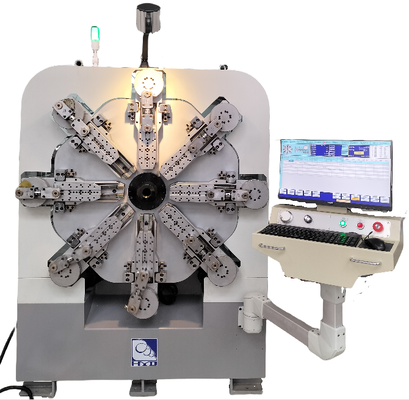

Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	HYD
Certification:	CE / IS09001
Model Number:	HYD-40T-12A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Seaworthy Plywood Case
Delivery Time:	30 Days
Payment Terms:	Negotiable,L/C,T/T
Supply Ability:	20 Pcs Per Month

Contact Now

Detailed Product Description

Wire Diameter:	Low Carbon Steel:2-6mm High-carbon Steel:1-4mm	Axis:	Twelve Axes
Optional Tools:	Servo Scissors	Power Ac:	380V 50Hz
Servo Motor:	Sanyo	Payment Term:	T/T
Guarantee Period:	One Year	Port:	Shenzhen,China
Highlight:	camless torsion spring machine , torsion spring machine with link rocker , double roller guides torsion machine

Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides

High-carbon steel: 1-4mm Cam-less Spring Machine & Torsion Spring Machine

Technical Specifications

Component	Specification	Remarks
Cam axis	8 axes	Sanyo 13120 (1.2KW) motor 8 pcs, 1:15 reducer 8 pcs
Wire feed axis	1 axis	Sanyo 18450 (4.5KW) motor 1 pcs
Rotary wire feed	1 axis	Sanyo 8100 (1.0KW) motor 1 pcs, 1:5 reducer 1 pcs
Guide	Distance of 100MM	HIWIN
Wire feeding group	4 groups	-
Max speed of wire feed	100 meters/min	-
Maximum change	±0.05 (length)	-
Wire range	Low-carbon steel 2-6MM High-carbon steel 1-4MM	-
Machine weight	3000KG	-
Machine size	2300MM × 1200MM × 1950MM	-
Servo motor	Sanyo	-
CNC control system	1 set	-
Wire decoiler	1 set	500KG
Shaft core	6 set	-
Wire feeding wheel/wire gauge	-	-

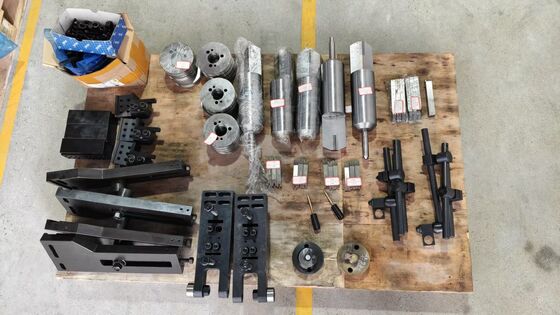

Blade adapter	6 pcs	-
Correcting wheel	2 set	-
Max Outside Diameter	300MM	-
Maximum diameter of tower shape	230	-

Machine Features

Link rocker design with independent single-axis servo motor control for simple, convenient operation. Shaped springs can be placed by tooling angle to reduce setup times and increase production efficiency.
Taiwan double roller guides with excellent wear resistance for durability and maintained accuracy. Dual track design allows flexible left-right adjustment.
Taiwan helical gear reducer for enhanced intensity and security.
Taiwan control system effectively ensures mechanical and computer synchronization.
Separated motor and power transmission lines reduce delivery line box load, increase turn angle of the line, and ensure accuracy in line feed transfer.

HYD Service

Free training provided at HYD production base. Pictures and video of machine operation sent for confirmation before shipment.
Professional and patient consulting service to help find suitable solutions.
Quick and safe shipment including booking, container loading, and shipping documents as per requirements.
Technical support via email and phone, with technicians available if necessary.
Spare parts freely supplied during one-year guarantee period, available at original cost thereafter.

Frequently Asked Questions

What information helps get an accurate quotation?

Provide related drawings, pictures, industrial voltage, planned output, and technical requirements.

What is the power supply of the machine?

Standard power supply in China is 380V, 3P, 50Hz. Customization available as per requirements.

What is the payment term?

30% deposit upon PO confirmation, 70% before shipment. Other payment terms accepted.

What is the delivery time?

Normal manufacturing time is 30 days after receiving deposit, depending on machine model. Some models can be completed within 15 days.

What is the guarantee period?

One year guarantee period from the date of B/L.
