Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System

Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System

Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
Spring Steel 2 - 8mm 3D CNC Wire Bender Stable Forming With CNC System
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-80-10A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: Negotiable,L/C,T/T
Supply Ability: 10 Pcs Per Month
Contact Now
Detailed Product Description
Wire Diameter: High-Carbon Steel:2-5mm Optional Tools: Additional Axes
Servo Motor: Sanyo Port: Shenzhen,China
Highlight:

Spring Steel CNC wire bender

,

2-8mm wire bending machine

,

3D CNC wire forming system

Spring Steel 2-8mm 3D CNC Wire Bender
Advanced CNC wire bending machine designed for stable forming of spring steel wires from 2-8mm diameter with precision 3D capabilities.
Technical Specifications
Max Feeding Speed 80 m/min
Wire Size Range Low Carbon Steel: 3-8mm
High Carbon Steel: 2-5mm
Control System 1 set
Wire Feeding Axis Count 3 pairs
3D Maximum Dimension 1000 × 1000 × 600mm
Minimum Length of Angle 4 times wire diameter
Pallet 1000 × 600 × 4mm
Machine Size 3500 × 1000 × 1800mm
Weight 3500 kg
Machine Gallery

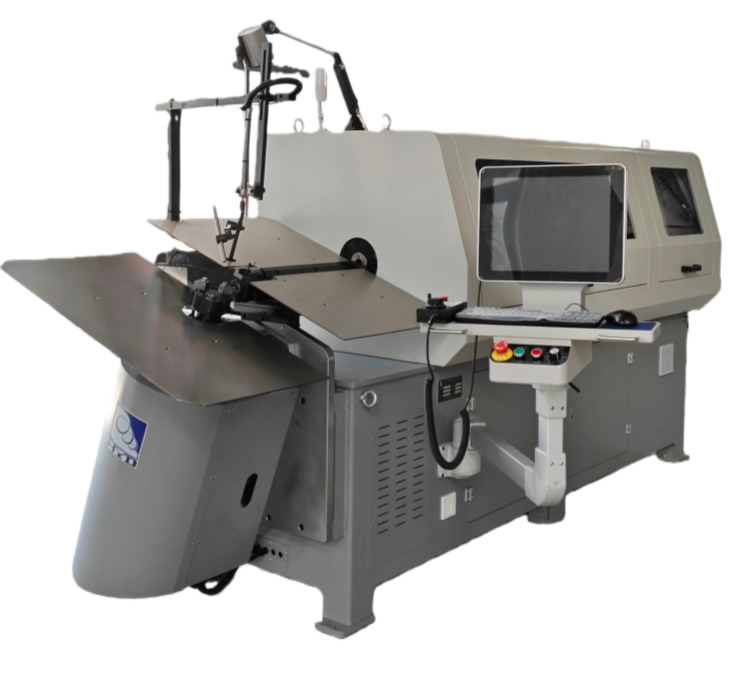

CNC Wire Bending Machine Front View

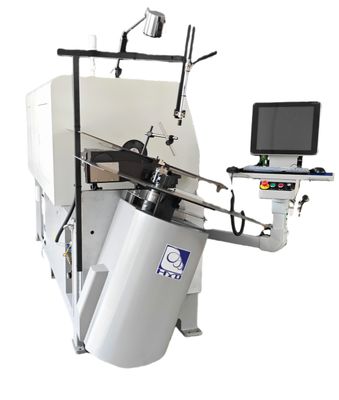

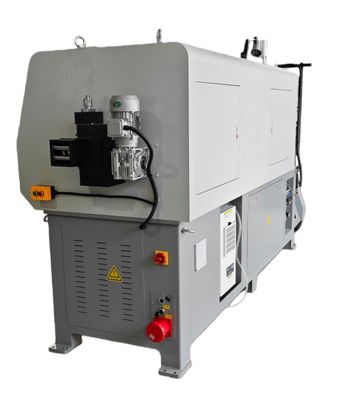

CNC Wire Bending Machine Side View
CNC Wire Bending Machine Control Panel
CNC Wire Bending Machine Wire Feeding System
CNC Wire Bending Machine Production View

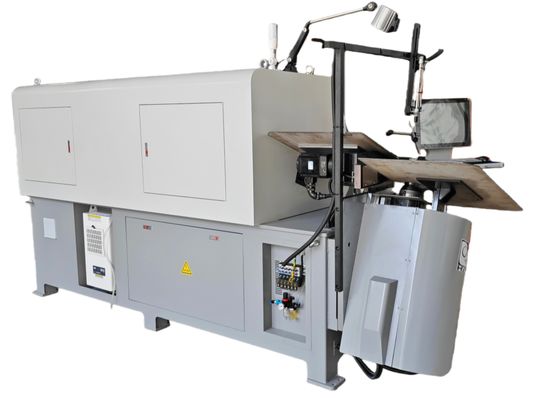

CNC Wire Bending Machine Overview
Key Features
  • Movable line box system enables back-and-forth movement without wire retraction
  • Enhanced forming stability for consistent production quality
  • Extended production capabilities for long wire products
  • Larger molding space for increased flexibility and convenience
HYD Service & Support
  • Comprehensive shipping services including booking, container loading, and documentation
  • Technical support via email and phone with on-site technician availability when needed
  • Free spare parts during one-year guarantee period, available at original cost thereafter
Wire Form Examples
Complex 3D Wire Form Example
Precision Wire Bending Sample
Industrial Wire Form Application
Custom Wire Form Design
