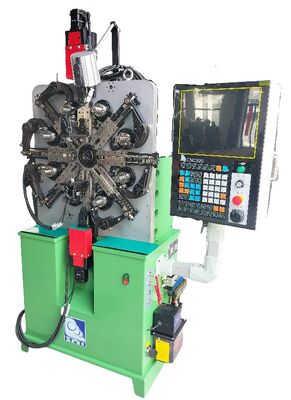

Customized 6-axis cam spring machine Automatic Spring Forming Machine , CNC Spring Machine With 150KG Decoiler

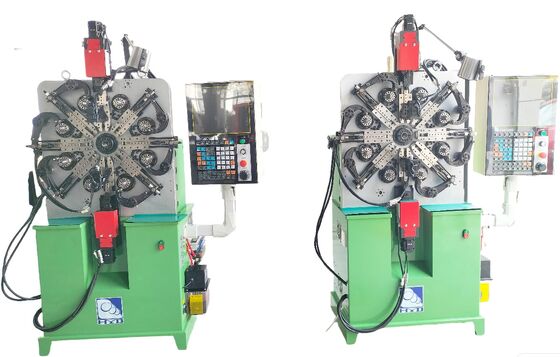

Customized 6-axis cam spring machine Automatic Spring Forming Machine , CNC Spring Machine With 150KG Decoiler

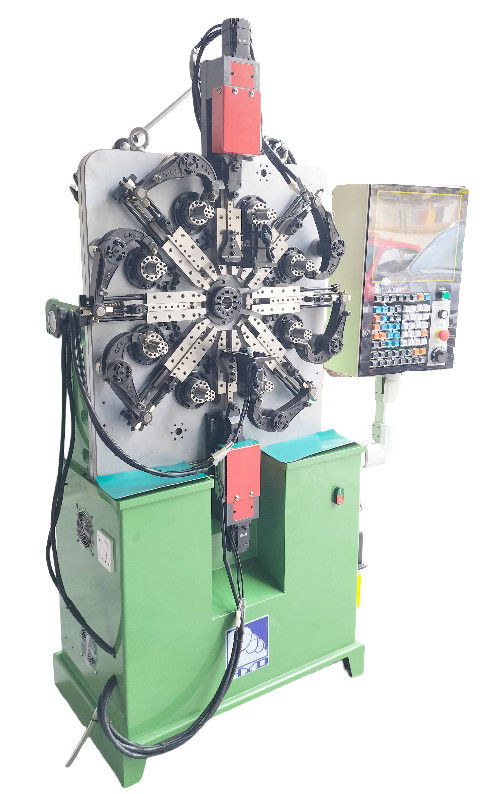

Customized 6-axis cam spring machine Automatic Spring Forming Machine , CNC Spring Machine With 150KG Decoiler

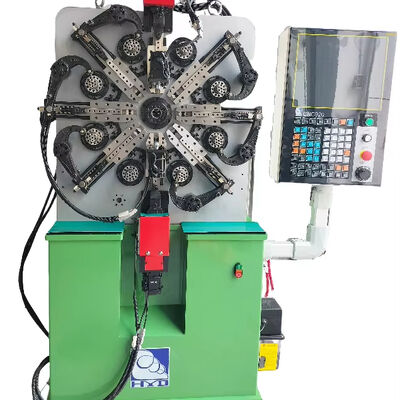

Customized 6-axis cam spring machine Automatic Spring Forming Machine , CNC Spring Machine With 150KG Decoiler
Customized 6-axis cam spring machine Automatic Spring Forming Machine , CNC Spring Machine With 150KG Decoiler
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-20T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 30 sets one week
Contact Now
Detailed Product Description
Wire Diameter: 0.2-2.3mm Axis: Three To Four Axes
Power Supply: 380V 50Hz CNC System: Automatic
Decoiler: 100KG Cutting Tool: Standard
Highlight:

6-axis cam spring machine

,

CNC spring forming machine

,

automatic spring machine with decoiler

Customized 6-Axis Cam Spring Machine - Automatic Spring Forming Machine with 100KG Decoiler
Machine Configuration & Capabilities
  • Available in 3 to 6 axis configurations based on requirements
  • Easy spring outside diameter adjustment through programmable settings
  • Independent outside diameter axis operation
  • Cam movement left and right capability
  • Wire feed length adjustment while machine is running
Optional Accessories

Spinner, machine hand, servo scissors

Technical Specifications
Specification Value
Wire Size 0.2-2.3mm
Max Feeding Speed 141m/min
Direct Storage Programs 1000
X-axis Motor Output 2.7KW
Y-axis Motor Output 2.7KW
Z-axis Motor Output 1.0KW
Machine Size 1400*900*1600mm
Voltage 380V
Weight 700kg
Spring Production Examples
CNC spring machine producing precision springs Close-up view of spring forming process Various spring types manufactured by CNC machine High-quality spring production output
Company Advantage

HYD is a production and sales integrated company with over 15 years of experience in the spring machine industry. Our extensive expertise makes us an experienced and reliable supplier for all your spring manufacturing needs.

Product Range

HYD manufactures comprehensive CNC machinery including spring machines, wire bending machines, and spring coiling machines - all featuring CNC automation for precision and efficiency.

Manufacturing Facility
HYD manufacturing facility and production line Quality control and inspection processes Advanced CNC machinery in production Technical team operating spring machines Finished spring products and quality assurance
