380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed

380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed

380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-20T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 30 sets one week
Contact Now
Detailed Product Description
Wire Diameter: 0.2-2.3mm Axis: Three To Four Axes
Delivery Date: 15 Days CNC System: Automatic
Decoiler: 150KG Cutting Tool: Standard
Additional Tool: Spinner
Highlight:

380V torsion spring machine

,

0.2-2.3mm torsion spring machine

,

141m/min torsion spring machine

380V 0.2 - 2.3mm Torsion Spring Machine With 141m/Min Max Feeding Speed
0.2 - 2.3mm Torsion Spring Making Machine with Three to Four Axes

This advanced CNC spring making machine is designed for producing tension springs, torsion springs, and various wire forms. The standard model features three axes, with customization options available to meet specific production requirements.

Key Features
  • Multi-axis configurations available (3, 4, 5, 6, 10, or 12 axes)
  • 12-axis model includes wire rotation function
  • High-speed production capabilities
  • Extensive program storage capacity
  • Robust motor system for precision operation
Technical Specifications
Specification Value
Wire Size Range 0.2 - 2.3mm
Maximum Feeding Speed 141 m/min
Direct Storage Programs 1000
X-axis Motor Output 2.7 KW
Y-axis Motor Output 2.7 KW
Z-axis Motor Output 1.0 KW
Machine Dimensions 1400 × 900 × 1600 mm
Operating Voltage 380V
Machine Weight 700 kg
Machine Gallery

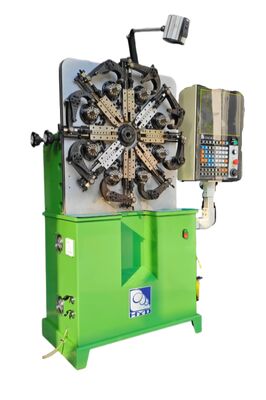

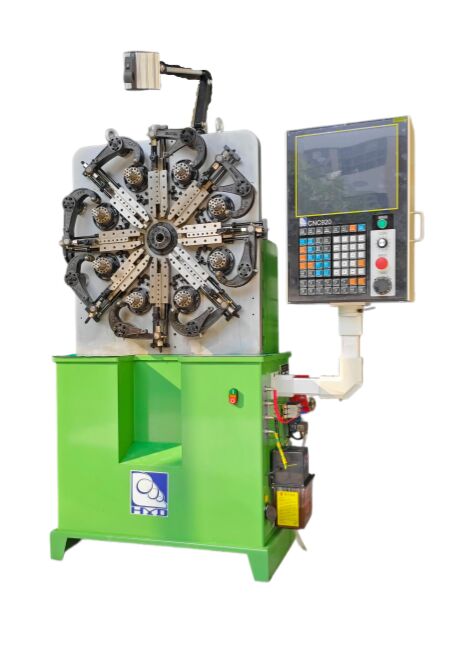

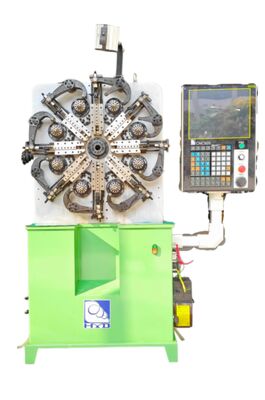

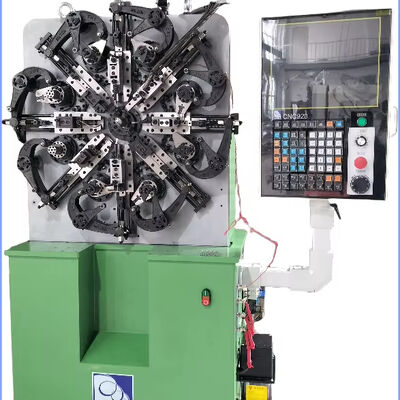

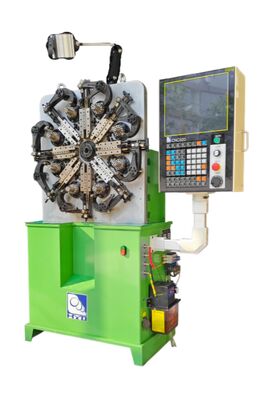

CNC torsion spring machine front view
CNC torsion spring machine side view
CNC torsion spring machine control panel
CNC torsion spring machine wire feeding system
CNC torsion spring machine detailed mechanism
CNC torsion spring machine production setup
CNC torsion spring machine operational view
Spring Production Samples
Precision torsion spring sample
Various spring types produced
Service Support
  • Durable machine quality with professional technical support
  • Free production solutions provided by experienced HYD engineering team
  • Comprehensive training and facility visits warmly welcomed
