High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler

High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler

High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-20T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 30 sets one week
Contact Now
Detailed Product Description
Wire Diameter: 0.2-2.3mm Axis: Three To Four Axes
Power Supply: 380V 50Hz CNC System: Automatic
Decoiler: 100KG Cutting Tool: Standard
Highlight:

High Speed CNC Spring Forming Machine

,

CNC Spring Machine with Decoiler

,

Wire Forming Machine 0.2-2.3mm

High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Advanced Spring Manufacturing Solution
This high-performance CNC spring forming machine features precision engineering with Taiwanese CNC control systems and Japanese Sanyo/Yaskawa servo motors for superior synchronization and accuracy.
Machine Configuration & Capabilities
Available in 3 or 4-axis configurations with comprehensive control over cam axis, feeding axis, quill rotary axis, and optional spinner axis.
  • Compression springs
  • Extension springs
  • Single and double torsion springs
  • Tower shaped compression springs
  • Flat wire springs
  • Custom wire forms
Technical Specifications
Wire Size Range 0.2 - 2.3mm
Maximum Feeding Speed 141 m/min
Direct Storage Programs 1000
X-axis Motor Output 2.7 KW
Y-axis Motor Output 2.7 KW
Z-axis Motor Output 1.0 KW
Machine Dimensions 1400 × 900 × 1600 mm
Operating Voltage 380V
Machine Weight 700 kg
Product Images

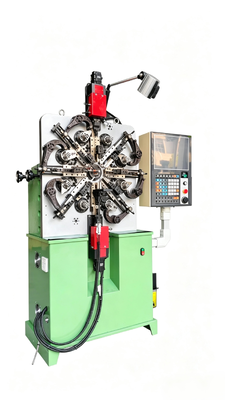

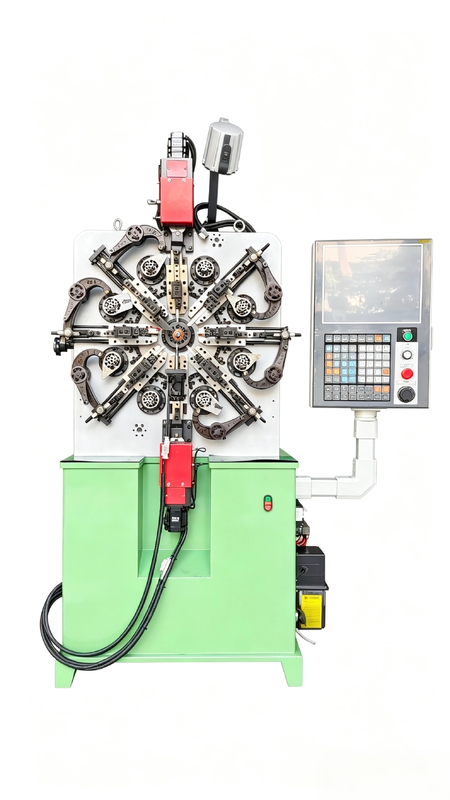

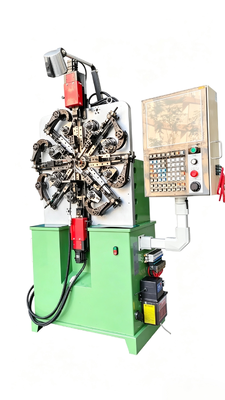

High Speed CNC Spring Forming Machine front view CNC Spring Machine control panel and workspace Spring forming machine side profile Precision springs produced by CNC spring machine
Manufacturing Excellence
HYD combines production and sales expertise with over 15 years of experience in the spring machine industry. As an experienced and reliable supplier, we specialize in manufacturing CNC spring machines, wire bending machines, and spring coiling machines - all featuring advanced CNC automation technology.
