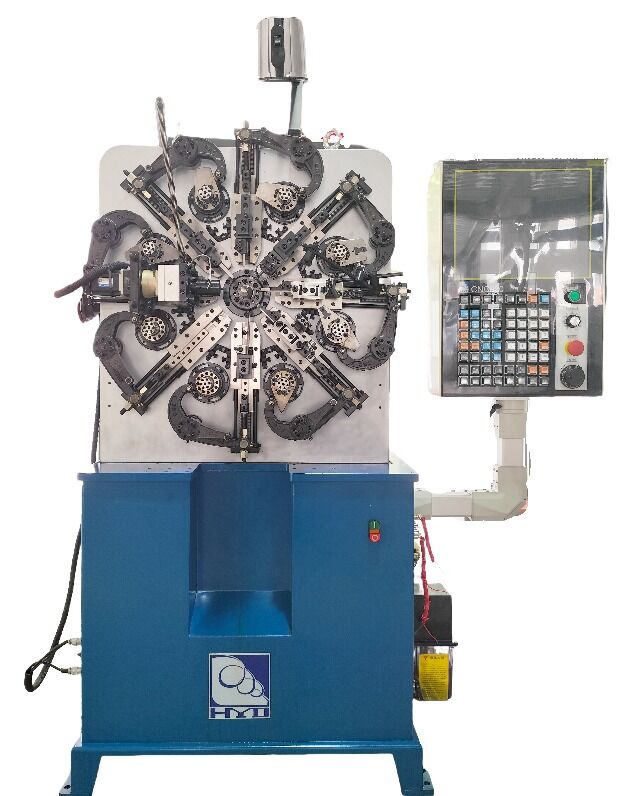

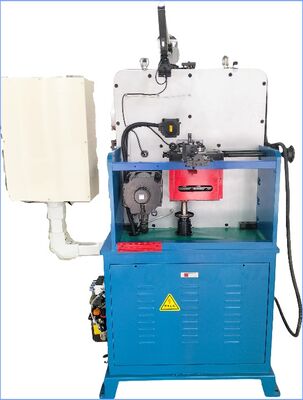

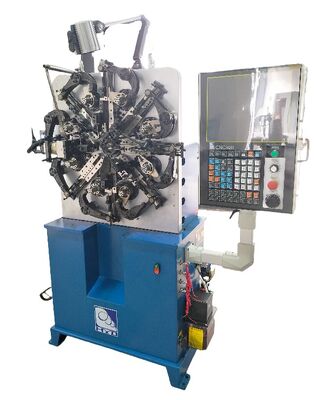

CNC Spring Machine 0.2 - 2.3mm Spring Forming Equipment Systems Fast

CNC Spring Machine 0.2 - 2.3mm Spring Forming Equipment Systems Fast

CNC Spring Machine 0.2 - 2.3mm Spring Forming Equipment Systems Fast
CNC Spring Machine 0.2 - 2.3mm Spring Forming Equipment Systems Fast
CNC Spring Machine 0.2 - 2.3mm Spring Forming Equipment Systems Fast
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-20T-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: T/T,L/C
Supply Ability: 20 Sets One Month
Contact Now
Detailed Product Description
Wire Size Range: 0.2-2.3mm Type: Cam Spring Machine
Power Supply: 380V Servo Motor: Japan Brand
Control System: Taiwan Diameter Coil Spring: Spring Coil Spring
Port: Shenzhen China Transport Package: Standard Wooden Case
Origin: Guangdong,China HS Code: 8463000000
Highlight:

CNC spring machine 0.2-2.3mm wire

,

CNC spring forming equipment fast

,

CNC spring machine systems with warranty

CNC Spring Machine 0.2 - 2.3mm Spring Forming Equipment Systems Fast

Our advanced CNC spring forming machine expertly produces various types of springs with high precision and exceptional speed. This universal spring forming machine is capable of manufacturing compression springs, tension springs, abnormal springs, and other wire forms with outstanding accuracy.

Key Features
  • Three-axes multi-functional spring forming capability
  • High precision manufacturing with fast production speeds
  • Universal design for various spring types and wire forms
  • Direct storage for 1000 programs
  • Maximum feeding speed of 141m/min
Technical Specifications
Specification Details
Model HYD-20T-3A
Wire Size Range 0.2 - 2.3mm
Maximum Feeding Speed 141m/min
Direct Storage Programs 1000
X-axis Motor Output 2.7KW
Y-axis Motor Output 2.7KW
Z-axis Motor Output 1.0KW
Angle Rotor 1 KW
Machine Size 1400 × 900 × 1600mm
Machine Voltage 380V
Machine Weight 700KG
Spring Samples and Machine Details
CNC Spring Machine close-up view showing precision components and mechanical details
Spring machine control panel and user interface display
CNC spring machine operational view
Spring manufacturing equipment detail
Precision spring forming mechanism
Various spring samples produced by the machine showing different types and sizes
Spring forming machine full operational view in manufacturing environment
Detailed view of spring manufacturing process and wire forming mechanism

Tag:

cnc coiling machine,

cnc spring making machine,

automatic spring machine
