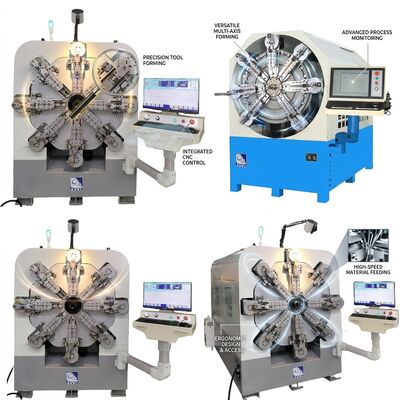

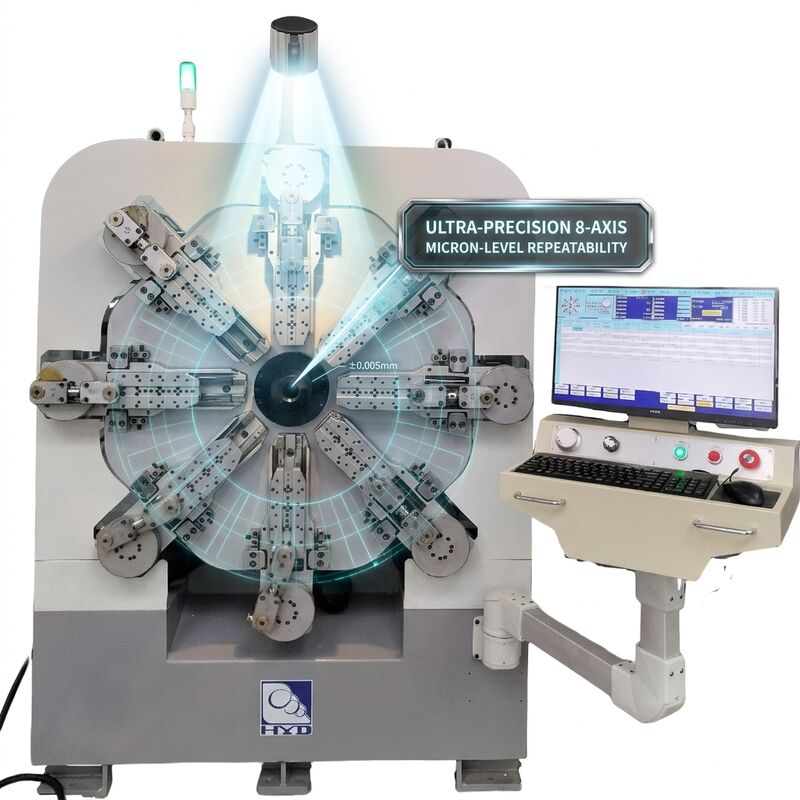

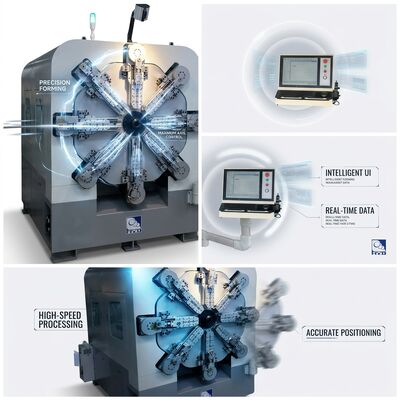

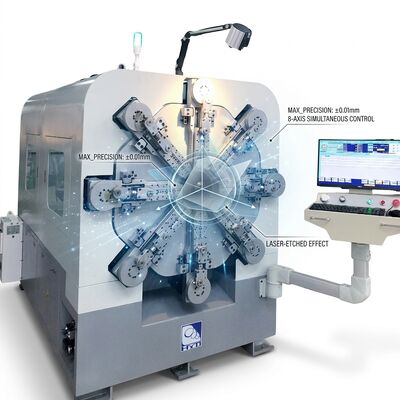

Camless 14 Axes CNC Spring Making Coiling Machine With Wire Rotary Former

The Camless 14-Axis CNC Spring Making Coiling Machine with Wire Rotary Former is a high-precision, multi-functional spring manufacturing system engineered for stability, efficiency, and ease of commissioning. Its camless design eliminates traditional rocker arm mechanisms, enabling faster setup, higher accuracy, and reduced maintenance costs.

Equipped with guide rails for enhanced precision and stable operation, the machine features servo-driven reducers for long service life and low heat generation. The integrated wire rotary system supports the production of complex extension springs, torsion springs, and special-shaped springs. An air conditioning unit maintains a cool internal temperature for comfortable commissioning and extended servo motor durability.

1. Camless and rocker-arm-free design delivers fast adjustment speed, high precision, and excellent stability.
2. CNC control system paired with Japan Sanyo Denki servo motors for reliable, accurate performance.
3. Wire feeding adopts a wire rotary system, making feeding more stable and commissioning easier.
4. Computer interface available in both Chinese and English for straightforward operation.
5. Suitable for producing double tension springs, straight springs, pagoda tension/compression springs, rectangular springs, wire forms, steel coil springs, and various fancy and special-shaped springs.
6. The wire transfer motor is separated from the wire feed box, reducing load on the feed box, increasing the wire transfer angle, and effectively guaranteeing feed transfer accuracy.

• Overall length: 4200 mm.
• Inner height: 2100 mm.
• Spacious interior — large enough to accommodate several people standing inside.
• Fitted with sliding doors that do not take up extra space.
• Protective cover reduces noise and safeguards production.
• Equipped with a transformer suitable for a wide range of voltage scenarios.

• Packing: Wooden case.
• Delivery: Within 45–60 days after down payment.

As an important component of the industrial system, springs are used in almost all areas of the national economy. With many kinds of springs in demand, production has evolved from primitive hand-made methods toward gradual automation.

Ninety years ago in China, the spring industry had very few mechanical equipment specializing in spring production. As the spring market grew, professional spring equipment companies gradually entered the country. Small domestic manufacturers are characterized by high quality and low price. With the continuous improvement of China's R&D and manufacturing capabilities, China has gradually moved from importing computer spring machines to exporting them — indicating that the Chinese spring machine industry has developed rapidly.
