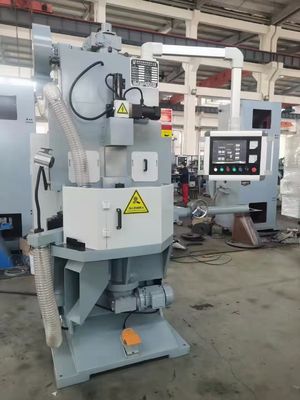

Numerical Control CNC Surface En Spring Grinder Grinding Machine

Numerical Control CNC Surface En Spring Grinder Grinding Machine

  • Numerical Control CNC Surface En Spring Grinder Grinding Machine
  • Numerical Control CNC Surface En Spring Grinder Grinding Machine
  • Numerical Control CNC Surface En Spring Grinder Grinding Machine
  • Numerical Control CNC Surface En Spring Grinder Grinding Machine
Numerical Control CNC Surface En Spring Grinder Grinding Machine
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: MK7790K-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: Negotiable
Supply Ability: 10 Pcs Per Month
Contact Now
Detailed Product Description
Wire Diameter: 3-20mm Outside Diameter: 200mm
Payment Term: T/T Guarantee Period: One Year
Port: Shenzhen,China
High Light:

wire grinding machine

,

spring end grinding machine

,

Numerical Control Spring Grinding Machine


M7790K-20 Numerical Control Spring Grinding Machine Wire Diameter 3-20mm High Speed


M7790K-20 Spring Grinding Machine Technical parameters
wire Diameter 3-20mm
outside diameter 200mm
height of spring 60-400mm (above 100mm compensation repair at any time, under 100mm firstly reset and then trim)
diameter of feed plate 1040mm
grinding wheel diameter 900*300*90
grinding wheel turning speed 750 r/min
wire Speed of grinding wheel 35 m/s
speed of feed plate 18 r/min
motor power 42.55KW
blowing rate of cooling fan 5000-7600m³
Machine weight: 9000KG
machine size 1740*2550*3400mm
dust wiper is equipped by user, airflow is more than 13000 m³/h
connection size of this machine is 400mm,height from center to ground 961mm
working temperature : +5℃ to 40℃
humidity max 90%
altitude not more than 1000m


Why us
• Independent R&D ability
• 15 years experience in spring machine industry
• Quick and patient reply for Bfore&After sale service
• Tranning in factory is available,spring set-up in machine for shipment
HYD Service:
1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.
2 .The professional and patient consulting service will help you find the suitable solution.
3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.
5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
FAQ
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.
4 Q: What is the delivery time?
A: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.
5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.



Specification reference

Numerical Control CNC Surface En Spring Grinder Grinding Machine 0
