| Place of Origin: | Dongguan,China |
| Brand Name: | HYD |
| Certification: | CE / IS09001 |
| Model Number: | HYD-60-10A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 20 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Pcs Per Month |
| Motor Brand: | Sanyo | Additional Tools: | Spinner |
|---|---|---|---|
| Machine Weight: | 3000KG | Machine Dimension: | 2800*1600*900mm |
| Highlight: | steel wire bending machine,automatic wire bending machine |
||

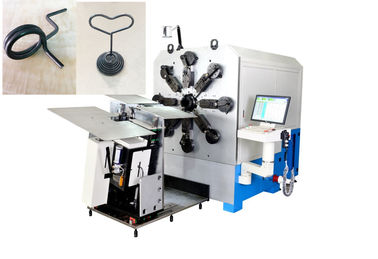

CNC Control Spring Bending Machine with Ten Axes Wire Diamter 1 - 4mm
----The cutter also can be move back and front,it is for making products more stable and cutter can be back when processing products,the forming space can be bigger so that it will not touch the cutter.

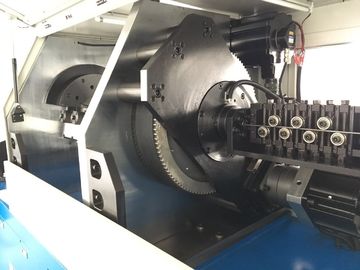

----Twisting head as a whole can be shifted around, you can make room for more complex shapes molded products.
----The cutter can be moved back and forth, forward cut short when processing products, the production of a more stable, long product when processing knife back,Forming a larger space, the product will not touch the cutter.
| Model | HYD-60-10A |
| Axis Count | 10 Axis |
| Max Feeding speed | 70m/min |
| Wire Size Range | low carbon steel:2-6mm |
| high-carbon steel:1-4mm | |
| Control system | 1 set |
| Wire feeding axis count | 2 pairs |
| 3D maximum dimension | 650*650*350mm |
| Pallet | 800*500*4mm |
| Machine Dimension | 2800*1600*900mm |
| Machine Weight | 3000kg |
| Decoiler | 500KG |
Samples:
Contact Person: linda
Tel: 008618033025363
