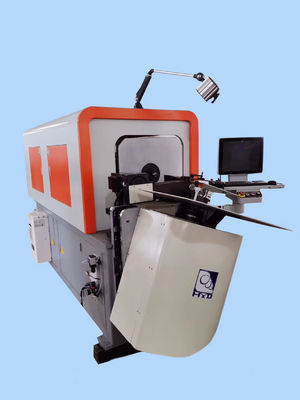

10 Axis CNC 10.0mm 3D Wire Spring Bending Machine

10 Axis CNC 10.0mm 3D Wire Spring Bending Machine

  • 10 Axis CNC 10.0mm 3D Wire Spring Bending Machine
  • 10 Axis CNC 10.0mm 3D Wire Spring Bending Machine
  • 10 Axis CNC 10.0mm 3D Wire Spring Bending Machine
  • 10 Axis CNC 10.0mm 3D Wire Spring Bending Machine
  • 10 Axis CNC 10.0mm 3D Wire Spring Bending Machine
10 Axis CNC 10.0mm 3D Wire Spring Bending Machine
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60-10A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 65000-73000
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 10 pcs Per Month
Contact Now
Detailed Product Description
Wire Diameter: Soft Wire 3-10mm Axis Number: 10 Axis
Servo Motor: Japan Brand Brand Name: HYD
Voltage: 3AC380V/50HZ Place Of Origin: Dongguan,China
After-sales Service Provided:: One Year Guarantee Decoiler: 500-1500KG
Tooling: Full Sets
High Light:

10.0mm Wire Bender

,

Computerized Spring Bending Machine

,

10.0mm Wire Spring Bending Machine

10 Axis 3.0-10.0mm Wire Bender Computerized Bending Machine Forming

Features
1. The principle of the wire bending machine is that the rotating the line. Its inner mold can rotate to support multiple R-angle forming to ensure fast and stable production and operation; the production speed is more than 20% higher than that of domestic counterparts.
2. Smart computer, easy to operate, easy to learn and understand.
3. Multiple sets of servo motors and reducers imported from Japan, with high precision and maintenance-free, long service life
4. One-piece precision molded wire feed box, with high precision, good stability, durability and no deformation.
5. The machine runs with low noise and adopts German imported belt drive.
6. Important parts such as bearings/gears/rails/screws are imported from Japan/Taiwan, with a one-year warranty, and the equipment is more durable and reliable.
7. The wire feeding precision is high, and it can make wire forming products within the range of 3-10 mm wire diameter, and the error is reduced to 0.1 mm
8. It is quick and easy to operate the production line diameter of the same size to change the line, and it supports the supporting use of the steel wire butting machine, which makes the machine operation more convenient.
9. The wire feed box supports advance and retreat.
10. Complete after-sales service system: repairs are available within 24 hours in Guangdong Province, and repairs within 48 hours outside the province. There are after-sales service persons in Jiangsu, Zhejiang and Shanghai to provide technical training support! Also abroad service.



Machine data



Wire Bending Machine Technical Parameters
Model HYD-80-10A
Axis Count 10 Axis
Max Feeding speed 70m/min
Wire Size Range low carbon steel:2-6mm
Control system 1 set
Wire feeding axis count 3 pairs
3D maximum dimension 650*650*350mm
Minmum length of angel 4 times wire diameter
Pallet 800*500*4mm
Machine Dimension 2800*1600*900mm
Machine Weight 4000KG
Decoiler 1000KG



Advantages&Features

3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotating is more fast and light,turning angle is more precise and stable

Twisting head is designed in copper tube transport,more stable and stronger than bearing transfer.





Samples:

10 Axis CNC 10.0mm 3D Wire Spring Bending Machine 0

10 Axis CNC 10.0mm 3D Wire Spring Bending Machine 1

10 Axis CNC 10.0mm 3D Wire Spring Bending Machine 2



HYD Service:

1 Professional and patient consulting service to help you find the suitable solution.



2 Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.



3 Powerful control of the machine production schedule and quality, and keep you posted about details in time.



4 Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.



5 Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.



6 For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.



7 For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.



FAQ


1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.

4 Q: What is the delivery time?
A: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.

5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.

6.How to contact HYD?
A:Cel/WhatsApp:+86 14778279155          Skype:helen20160701
