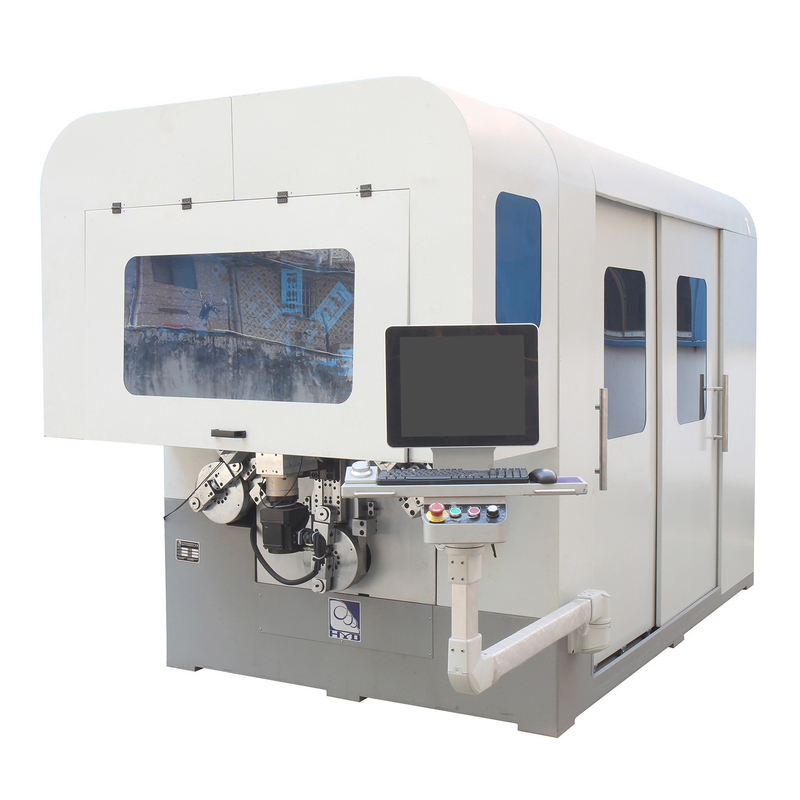

Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire

Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire

Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire
Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire
Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-40T-12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Wire Size: High-carbon Steel:1-4mm Axis: Twelve Axes
Power Ac: 380V 50Hz Servo Motor: Sanyo
Highlight:

Twelve Axes wire forming machine

,

Camless steel wire forming machine

,

High carbon steel spring machine

Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire
Twelve Axes Cam-less Spring Machine Wire Diameter High-carbon Steel:1-4mm
Specification Value
Axis Count twelve axis
Wire Size Range low carbon steel:2-6mm
high-carbon steel:1-4mm
Lead rail distance of 100mm
Wire feeding count 4 pairs
Max Feeding speed 100m/min
Maximum error ± 0.05mm(length)

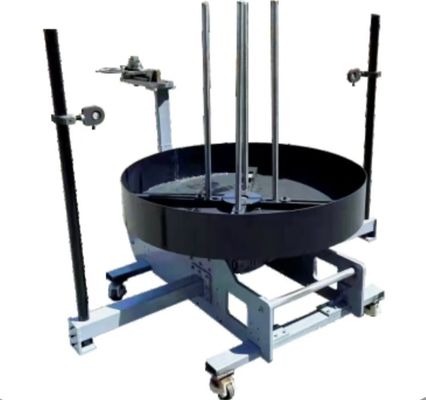

Control system+decoiler 1 set
Servo motor power 27KW
Reducer 11pcs
Minimum length of ange 4 times wire diameter
Machine size 1920*1200*1820mm
Machine weight 3000kg
Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire 0 Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire 1 Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire 2
Machine Features
  • Taiwan control system, more effectively ensure the mechanical and computer synchronization.
  • To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.
Twelve Axes Camless Wire Forming Machine For 1-4mm Diameter High Carbon Steel Wire 3
