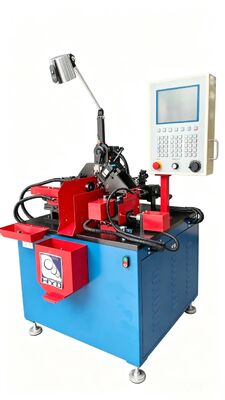

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	HYD
Certification:	CE / IS09001
Model Number:	HYD-QC-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	US$13260~18840
Packaging Details:	Plywood Case
Delivery Time:	20 Days
Payment Terms:	L/C,T/T
Supply Ability:	30 sets Per Month

Contact Now

Detailed Product Description

Voltage:	380V	Power AC:	380V 50Hz
Axis Count:	6 Axes	Servo Motor:	Sanyo
Material:	SUS304, Stainless Steel	Max Wire Feed Speed:	141m/min

M-M10 High Speed Wire Thread Insert Machine Screw Bushing Making Machine

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making

Screw Thread Machine Technical parameters

Model	HYD-QC-10
Axis Count	6 axis
Wire size range	M4-M10
Maximum wire length	Unlimted
Max feeding speed	141m/min
X-axis motor output	0.4KW
Y-axis motor output	1.0KW
Z-axis motor output	0.4KW
B-axis motor output	1.0KW
A-axis motor output	1.0KW
C-axis motor output	0.4KW
Machine size	10007001650mm
Machine weight	500KG

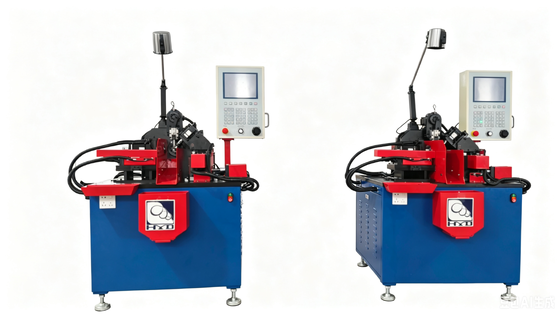

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making

Helicoil Spring Samples:

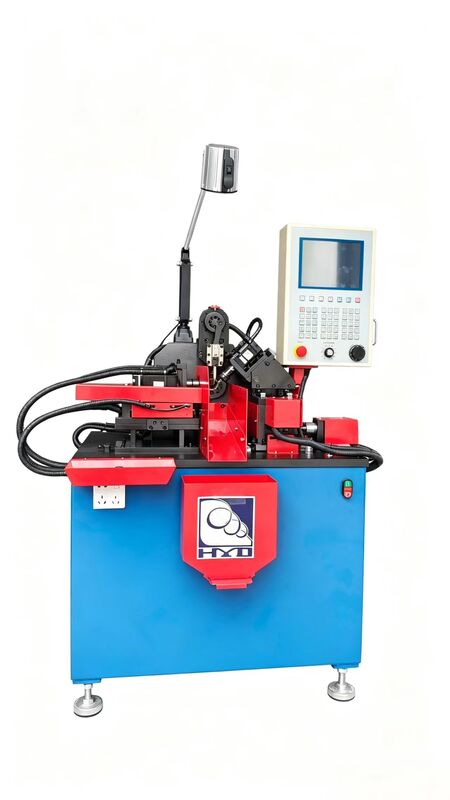

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making

Workshop Display:

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making

FAQ

1. Q: What information will be helping to get an accurate quotation from us?

A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

2. Q: What is the power supply of the machine?

A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

3. Q: What is the payment term

A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.

4 Q: What is the delivery time?

A: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.

5. Q: What is the guarantee period of the machine?

A: 1 year
