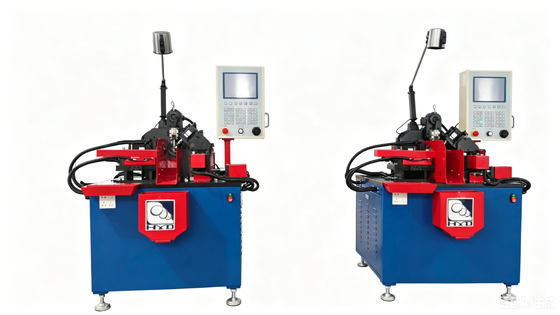

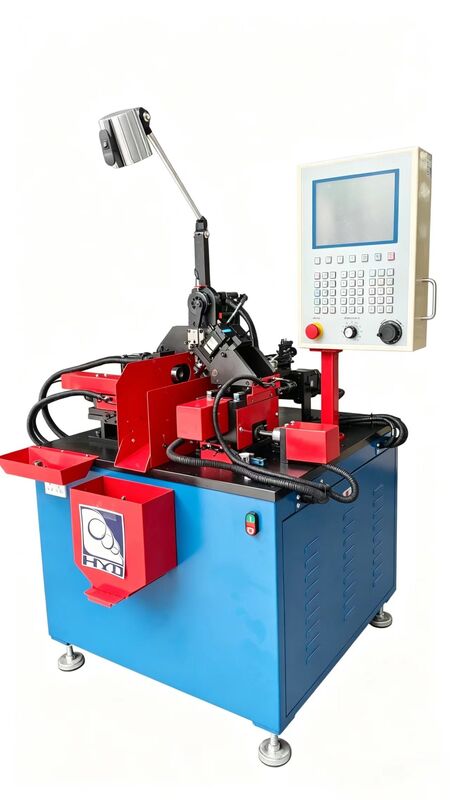

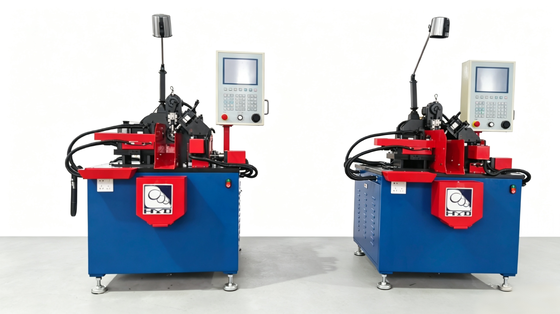

High Speed Wire Thread Insert Machine , M4-M10 Screw Bushing Making Machine

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	HYD
Certification:	CE / IS09001
Model Number:	HYD-QC-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	US$13260~18840
Packaging Details:	Plywood Case
Delivery Time:	20 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	40 sets Per Month

Contact Now

Detailed Product Description

Axis:	6 Axes	Optional Tools:	Additional Axes
Power Ac:	380V 50Hz	Servo Motor:	Sanyo
Guarantee Period:	One Year	Material:	SUS304,Stainless Steel
Voltage:	380V	Max Wire Feed Speed:	141m/min
Highlight:	High speed wire thread insert machine , M4-M10 screw bushing making machine , Screw sleeve machine with warranty

High Speed Wire Thread Insert Machine, M4-M10 Screw Bushing Making Machine

Technical Specifications

Parameter	Specification
Model	HYD-QC-10
Axis Count	6 axis
Wire Size Range	M4-M10
Maximum Wire Length	Unlimited
Max Feeding Speed	141 m/min
X-axis Motor Output	0.4 KW
Y-axis Motor Output	1.0 KW
Z-axis Motor Output	0.4 KW
B-axis Motor Output	1.0 KW
A-axis Motor Output	1.0 KW
C-axis Motor Output	0.4 KW
Machine Size	1000 × 700 × 1650 mm
Machine Weight	500 KG

Helicoil Spring Samples

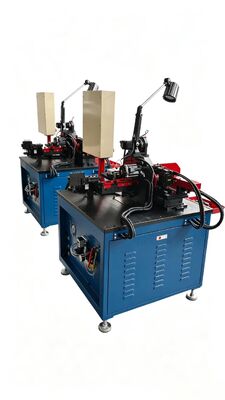

Workshop Display

Frequently Asked Questions

1. What information will be helping to get an accurate quotation from us?

The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

2. What is the power supply of the machine?

The standard power supply in China is 380V, 3P, 50Hz. We also can customize as per requirement.

3. What is the payment term?

The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

4. What is the delivery time?

Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

5. What is the guarantee period of the machine?

1 year
