CNC Control Spring Bending Machine 12 Axis With Flexible Safety Cutter

CNC Control Spring Bending Machine 12 Axis With Flexible Safety Cutter

CNC Control Spring Bending Machine 12 Axis With Flexible Safety Cutter
CNC Control Spring Bending Machine 12 Axis With Flexible Safety Cutter
CNC Control Spring Bending Machine 12 Axis With Flexible Safety Cutter
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-60-10A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 20 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10 Pcs Per Month
Contact Now
Detailed Product Description
Motor Brand: Sanyo Term: FOB,CIF,EXW
Machine Weight: 3000KG Decoiler: 500KG
Highlight:

12 axis CNC spring bending machine

,

flexible safety cutter bending machine

,

CNC control spring bending machine

CNC Control Spring Bending Machine 12 Axis With Flexible Safety Cutter
CNC Control Spring Bending Machine with Twelve Axes for wire diameter range of 1-4mm, designed for precision manufacturing of complex spring components.
Key Features
  • Adjustable cutter with forward and backward movement capability for enhanced production stability
  • Extended forming space when cutter is retracted, preventing product contact during processing
  • Rotating twisting head that shifts around to accommodate complex shape molding requirements
  • Forward cutter positioning for short product processing with improved stability
  • Backward cutter positioning for longer product processing with expanded forming space
Technical Specifications
Model HYD-40T-12A
Axis Count 12 Axis
Maximum Feeding Speed 70m/min
Wire Size Range Low Carbon Steel: 2-6mm
High Carbon Steel: 1-4mm
Control System 1 set
Wire Feeding Axis Count 4 pairs
3D Maximum Dimension 650×650×350mm
Pallet 800×500×4mm
Machine Dimension 2800×1600×900mm
Machine Weight 3500kg
Decoiler 500KG-1000KG
Product Images

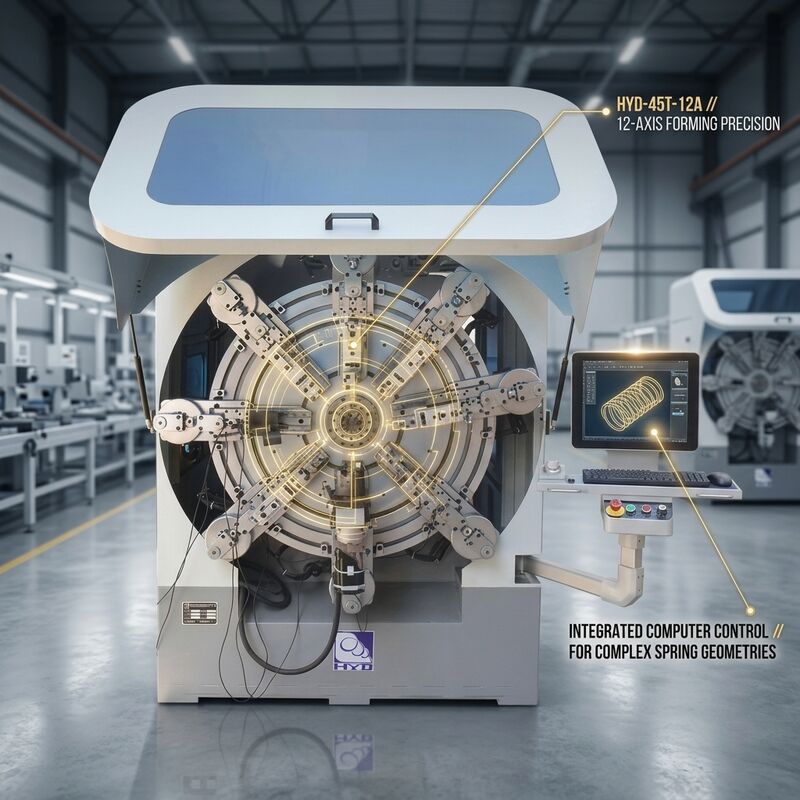

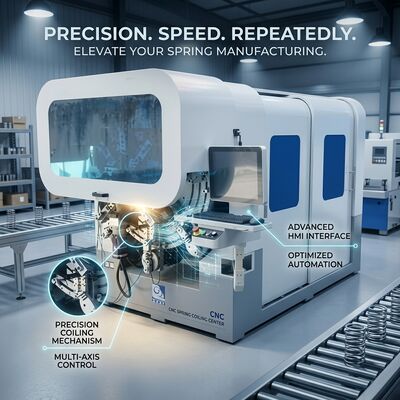

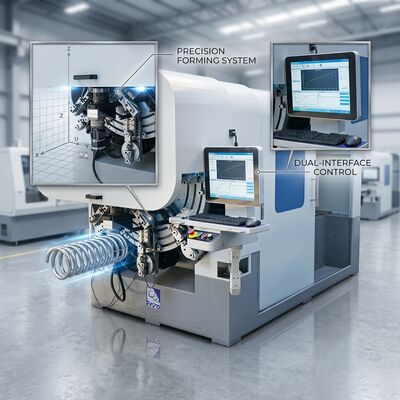

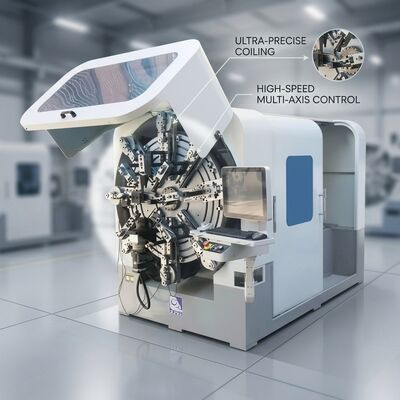

CNC Spring Bending Machine front view CNC Spring Bending Machine side view CNC Spring Bending Machine control panel CNC Spring Bending Machine wire feeding system CNC Spring Bending Machine detailed close-up
Sample Production

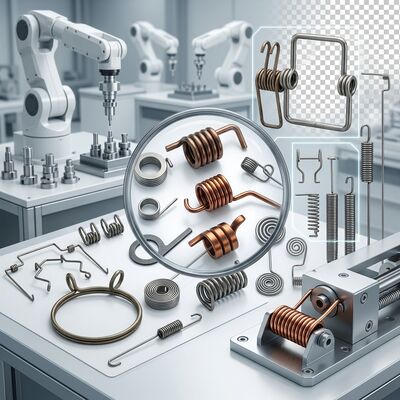

Sample springs produced by CNC Spring Bending Machine
