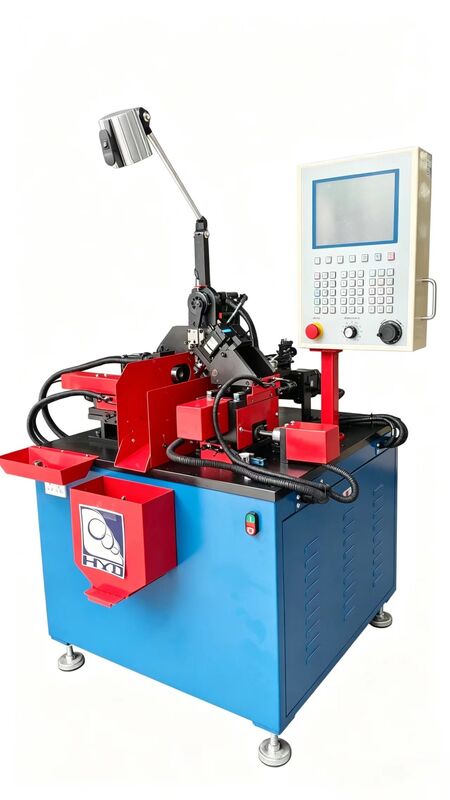

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making
High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making
High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making
Product Details:
Place of Origin: Dongguan,China
Brand Name: HYD
Certification: CE / IS09001
Model Number: HYD-QC-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US$13260~18840
Packaging Details: Plywood Case
Delivery Time: 20 Days
Payment Terms: L/C,T/T
Supply Ability: 30 sets Per Month
Contact Now
Detailed Product Description
Voltage: 380V Power AC: 380V 50Hz
Axis Count: 6 Axes Servo Motor: Sanyo
Material: SUS304, Stainless Steel Max Wire Feed Speed: 141m/min
Highlight:

6 axis wire thread insert machine

,

high speed screw bushing machine

,

M2-M24 screw sleeve machine

High Speed 141m/min 6 Axis Wire Thread Insert Machine for M2-M24 Screw Bushing Making
M-M10 High Speed Wire Thread Insert Machine Screw Bushing Making Machine
High Speed Wire Thread Insert Machine front view High Speed Wire Thread Insert Machine side view High Speed Wire Thread Insert Machine control panel High Speed Wire Thread Insert Machine detailed view High Speed Wire Thread Insert Machine operation view High Speed Wire Thread Insert Machine production setup
Technical Specifications
Parameter Specification
Model HYD-QC-10
Axis Count 6 axis
Wire size range M4-M10
Maximum wire length Unlimited
Max feeding speed 141m/min
X-axis motor output 0.4KW
Y-axis motor output 1.0KW
Z-axis motor output 0.4KW
B-axis motor output 1.0KW
A-axis motor output 1.0KW
C-axis motor output 0.4KW
Machine size 1000*700*1650mm
Machine weight 500KG
Machine technical diagram
Helicoil Spring Samples
Helicoil spring sample product Helicoil spring technical sample
Workshop Display
Machine workshop installation and setup
Frequently Asked Questions
Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q: What is the payment term?
A: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
Q: What is the delivery time?
A: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
Q: What is the guarantee period of the machine?
A: 1 year
