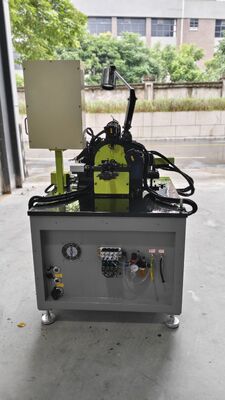

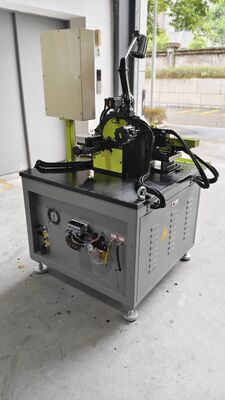

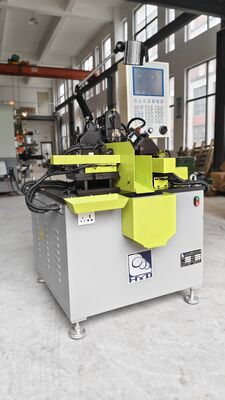

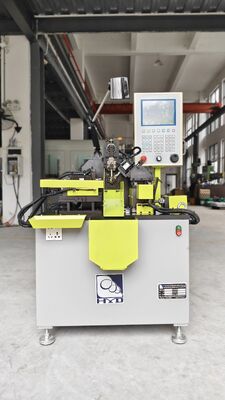

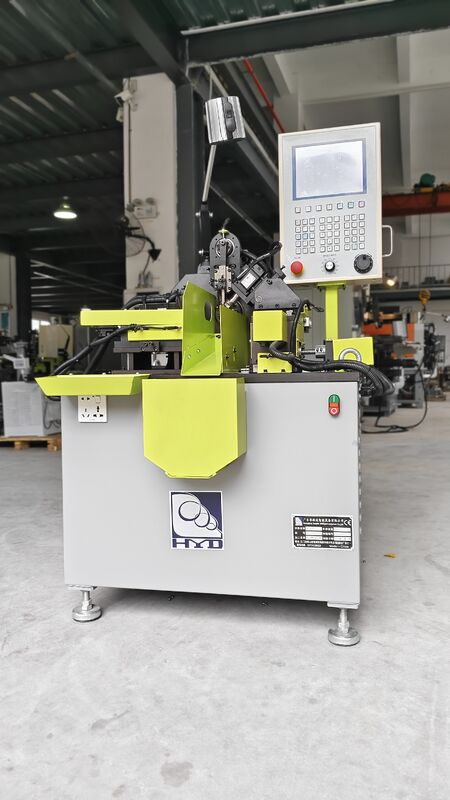

M2-M24 6 Axis High Precision CNC Helicoil Spring Making Machine For Wire Thread Insert

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	HYD
Certification:	CE / IS09001
Model Number:	HYD-QC-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	US$13260~15840
Packaging Details:	Plywood Case
Delivery Time:	25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	40 Pcs Per Month

Contact Now

Detailed Product Description

Axis:	6 Axes	Optional Tools:	Additional Axes
Power Ac:	380V 50Hz	Servo Motor:	Sanyo
Guarantee Period:	One Year	Port:	Shenzhen,China
Material:	SUS304,Stainless Steel	After-sales Service Provided:	Commissioning And Training,Online Support
Voltage:	380V	Machine Size:	10007001650mm
Highlight:	CNC Helicoil Spring Making Machine , 6 Axis Wire Thread Insert Machine , M2-M24 Screw Sleeve Machine

M2-M24 6 Axis High Precision CNC Helicoil Spring Making Machine for Wire Thread Inserts

The HYD-QC-10 is a 6-axis high precision CNC helicoil spring making machine engineered for producing wire thread inserts (screw bushings) in the M4–M10 range. With unlimited maximum wire length and a feeding speed of up to 141 m/min, it delivers consistent, high-accuracy helicoil spring output for industrial manufacturing.

Technical Specifications

Parameter	Specification
Model	HYD-QC-10
Axis Count	6 axis
Wire Size Range	M4–M10
Maximum Wire Length	Unlimited
Max Feeding Speed	141 m/min
X-axis Motor Output	0.4 KW
Y-axis Motor Output	1.0 KW
Z-axis Motor Output	0.4 KW
B-axis Motor Output	1.0 KW
A-axis Motor Output	1.0 KW
C-axis Motor Output	0.4 KW
Machine Size	1000 × 700 × 1650 mm
Machine Weight	500 KG

Helicoil Spring Samples

After-Sale Service

Free installation and training service at the HYD company facility.
Efficient online response provided to customers at all times.

Technical Support

Can you provide technical support?

HYD provides free technical support, installation, and training for the machine.

How do you support when the machine goes wrong?

Consult with an HYD specialist online via telephone, Skype, WhatsApp, or other channels to receive a high-efficiency solution for incorrect operation or consumable part replacement.
HYD specialists will teach you how to change parts during the training period.

Frequently Asked Questions

1. What information will help to get an accurate quotation from us?

The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

2. What is the power supply of the machine?

The standard power supply in China is 380V, 3P, 50Hz. We can also customize as per requirement.

3. What is the payment term?

The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

4. What is the delivery time?

Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on the machine model. Some machine production can be finished within 15 days.

5. What is the guarantee period of the machine?

The guarantee period is one year from the date of B/L.
